Heat Pump Installation in Cotham, Bristol

Heat pumps in Cotham — the local context

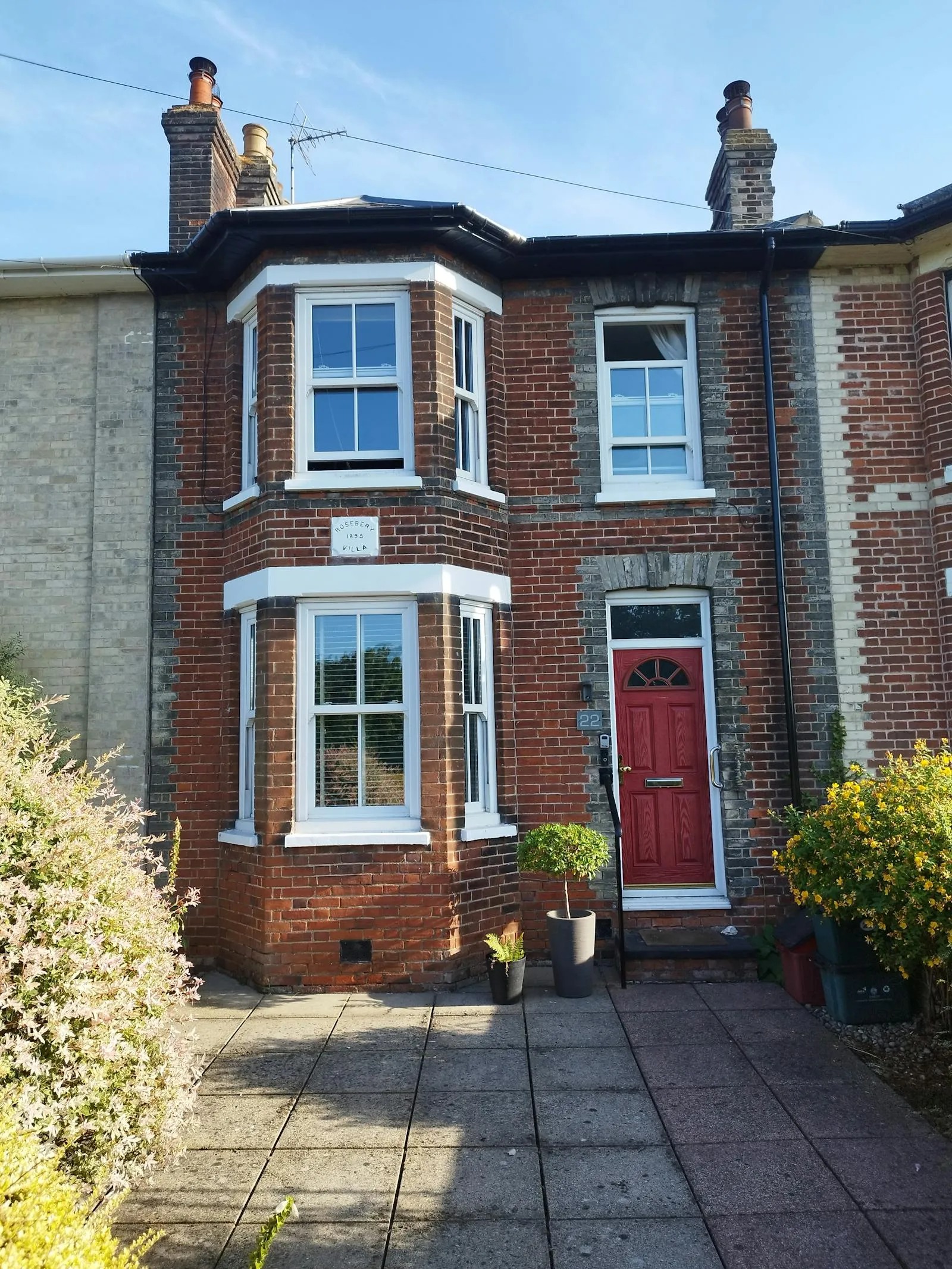

Cotham is the dense, urban half of inner-north Bristol — developed from the 1860s onwards as individual speculative streets rather than a coordinated suburban masterplan. The result is a tight Victorian townscape where each street carries the architectural signature of its original builder: terraced and semi-detached houses in Pennant and Brandon Hill stone with Bath stone limestone dressings, varied façade detail, and a higher building density than the surrounding suburbs. The defining housing-stock pattern is roughly 60% mid-to-late Victorian (1860–1910), 25% Edwardian or interwar (1910–1940), and 15% post-1950 infill. Solid-wall construction predominates; cavity-wall construction is rare on the period stock.

The single biggest design factor for a heat pump installation in Cotham is the shared Cotham & Redland Conservation Area, designated on 18 February 1981 (CA18, entity 6300486). The character appraisal — a substantial two-part document — was adopted on 1 September 2011 and explicitly differentiates the architectural sub-areas within the unified CA boundary. Cotham's sub-area is characterised by individual urban streets, high-quality Victorian townscape, smaller properties, and tighter street patterns than Redland's spacious villa stock. Inside the boundary, external alterations to principal elevations typically need planning permission rather than relying on Permitted Development. Article 4 Direction No. 8 (boundary walls) adds a further restriction on alterations to front-garden boundary walls and railings.

Cotham also carries a notably dense listed-building concentration. 144 individually listed buildings sit within Cotham ward (ward-level aggregate, British Listed Buildings registry) — substantially more than Redland's 22. The density reflects Cotham's tighter Victorian development and the higher per-street architectural quality of the speculative-builder era. Listed-building consent is the operative constraint on these properties, separately from the CA planning regime — and applies regardless of whether the proposed alteration would otherwise qualify for Permitted Development.

The practical effect on heat pump design centres on outdoor unit siting. On Cotham's tighter plots, side passages and rear courtyards are often the only Permitted Development-compliant options, and even then the MCS 020(a) noise standard at the nearest residential window can be the binding constraint when the neighbouring property is close. Front-of-property or visible side-elevation siting needs to go through planning consent with Bristol City Council's conservation officer. The consultation, where it's needed, is usually a one-meeting affair if the design is sound; the lead time is in the formal planning timeline, typically two to three weeks.

Cotham's Pennant and Brandon Hill stone with Bath stone limestone dressings — the masonry that defines the streetscape — predates any cavity-wall standard. That means an R290 heat pump (capable of flow temperatures up to 75°C) is typically the design choice, paired with a subset of radiator upgrades on the rooms with the largest exposed wall area. Solid-wall insulation, where the property is unrendered and CA-sensitive, is often part of the wider conversation — though the BUS grant does not fund it, so fabric improvements are usually owner-funded, or covered by the Warm Homes: Local Grant for eligible lower-income households. Internal solid-wall insulation is usually the discreet option on stone-faced frontages where external insulation would breach CA controls.

For the streets outside the conservation area boundary — the early-20th-century infill plots and post-1950 development — standard Permitted Development rights apply, and installations follow the routine pattern: heat-loss calculation, sizing, brand selection, outdoor unit siting against the MCS 020(a) noise standard at the nearest residential window. Most installations in this part of Cotham take three to six days on site without the additional conservation-area design overhead.

Cotham Hill, Cotham Brow, and the parade of independent shops along the Whiteladies Road edge are the recognisable Cotham features. None directly affects a heat pump installation, but properties closer to the Cotham/Redland boundary tend to sit in the densest part of the CA — early conservation-officer consultation before the survey is worth doing on terrace-row properties south of Cotham Brow.

Grants for Cotham homeowners

The Boiler Upgrade Scheme takes £7,500 off an air source heat pump for owner-occupiers and private landlords replacing fossil-fuel or electric heating. Your MCS-certified installer applies and deducts it from the bill; there's no income test, and since 28 April 2026 no EPC is needed.

Almost every home in Cotham is on mains gas, so the standard £7,500 is the figure that applies.

Lower-income households in privately owned homes rated EPC D to G should check the Warm Homes: Local Grant, delivered through Bristol City Leap's Bright Green Homes project, which can fund upgrades in full. More on our costs and grants page.

Choosing an installer for a Cotham home

Use an MCS-certified installer: it's a legal condition of the grant and of most manufacturer warranties, and it covers the noise calculation that keeps an installation within permitted development (37 dB(A) at the neighbour's nearest window). Check any company on the MCS register.

Planning matters go to Bristol City Council. Our installer guide lists the questions to ask, and our methodology explains how installers are chosen for enquiries from this site.
